Turning the Instrument On and Off

WARNING

Before turning on the instrument, verify that the supply voltage you plan to use falls within the supply voltage range noted on the instrument’s AC Adapter.

Supplying a voltage that falls outside the specified range to the AC Adapter could damage the instrument or AC Adapter, causing bodily injury.

 CAUTION

Do not input a voltage to input terminals while the instrument or wireless module is off.

Doing so could damage the instrument or wireless module.

IMPORTANT

  • Be sure to turn off the instrument and any wireless modules after use.

  • The instrument and wireless modules will not malfunction in the event of a momentary power interruption lasting 40 ms or less. However, an interruption lasting longer than 40 ms will cause the instrument and wireless modules to malfunction. Check the condition of the power supply being used. In addition, you can continue measurement even in the event of an outage by using the Z1007 Battery Pack.

    Installing a Battery Pack

LR8450/LR8450-01

(1) Turning on the instrument

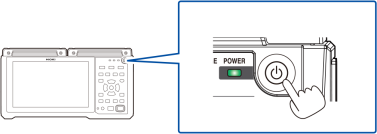

Press the power key to turn on the instrument. The POWER LED will turn green.







When the instrument starts up, the icon will be shown on the bottom right of the screen.

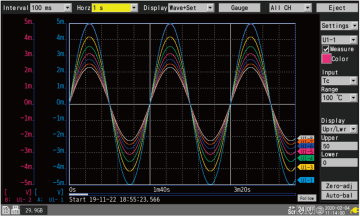

Screen and icons

When the instrument is powered by the AC Adapter, the power plug icon will be displayed.

When operating on battery power, the battery icon will be displayed.

(2) Turning off the instrument

Pressing the power key will cause the instrument to display a message confirming whether you want to turn off the instrument.

Choose [OK] and press the ENTER key to turn off the instrument.

The POWER LED will be turned off.

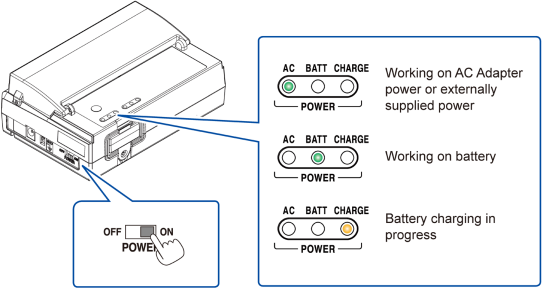

Wireless modules

(1) How to turn on the module

Move the POWER switch’s slider to the on position to turn on the wireless module.

  • While the wireless module is working on AC Adapter power or externally supplied power, the AC LED remains on.

  • While the wireless module is working on battery power, the BATT LED remains on.

  • If the battery starts to run out, the BATT LED will start to blink.

  • While the battery charging is in progress, the CHARGE LED remains on.



(2) How to turn off the module

Move the POWER switch’s slider to the off position to turn off the wireless module.

  • The AC or BATT LED will be turned off.

  • While the battery charging is in progress, the CHARGE LED remains on.

Charging battery

The instrument can charge the Battery Pack even during the power-off condition.
