Z1014 AC Adapter (LR8450/LR8450-01 accessory)
Z1008 AC Adapter (wireless module accessory)
The LR8450/LR8450-01 ships with the Z1014 AC Adapter.
Wireless modules ship with the Z1008 AC Adapter.
These adapters allow the LR8450/LR8450-01 and wireless modules to be powered by commercial power. (AC power)
When using both the AC Adapter and Battery Pack, the AC Adapter has priority in powering the instrument or module. When power from the AC Adapter is interrupted, the instrument or module will immediately switch to battery power.
|
|
|
L1012 Power Cable
The L1012 Power Cable can power the LR8450 or LR8450-01 with DC power.
It can not be used with wireless modules.
|
|
|
Z1007 Battery Pack
The optional Z1007 Battery Pack can be used to operate the instrument when commercial power, which enables through the AC Adapter the instrument to operate, cannot be used. In addition, it can be used as a backup power supply in the event of a power outage.
Installing a Battery Pack
|
|
|
Z3230 Wireless LAN Adapter (wireless module accessory)
Z3231 Wireless LAN Adapter (wireless module accessory)
The LR8530, LR8531, LR8532, LR8533, LR8534, LR8535, and LR8536 come with a Wireless LAN Adapter.
It is used by attaching it to the wireless module.
Preparing the Wireless Modules
|
|
|
Z2000 Humidity Sensor
The Z2000 Humidity Sensor can be connected to the U8550, U8551, U8552, or LR8531 to measure humidity.
The Z2000 requires a power supply.
With the U8550, U8551, and U8552, the instrument’s VOUTPUT 1 and 2 power supply output terminals can be used to supply power to the Z2000. With the LR8531, connect the Z2000 to the module’s Humidity Sensor power supply terminal.
The Z2000 has a cable length of 3 m.
|
|
|
Z5040 Fixed Stand
You can mount the instrument on a wall or other surface using the optional Z5040 Fixed Stand.
For more information about how to install the stand, see the Instruction Manual that comes with the Z5040.
Use the screws that come with the Z5040 (M3×5 mm) to attach the instrument to the stand.
|
|
|
C1012 Carrying Case
The optional C1012 Carrying Case provides a convenient way to transport the instrument. The C1012 can accommodate the logger (with up to four plug-in modules) as well as wireless modules (up to seven).
|
|
|
Z4001 SD Memory Card (2 GB)
Z4003 SD Memory Card (8 GB)
Z4006 USB Drive (16 GB)
You can save measurement data and settings to an SD Memory Card or USB Drive. Proper operation of the instrument with SD memory cards and USB drives other than options provided by Hioki is not guaranteed.
|
|
|

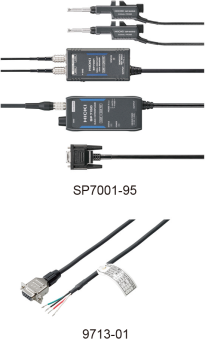

SP7001-95 Non-Contact CAN Sensor
9713-01 CAN Cable
The SP7001-95 Non-Contact CAN Sensor and the 9713-01 CAN Cable are options for the U8555 and LR8535, and used for CAN signal measurement.
|
|
