LED indicators (wireless modules)

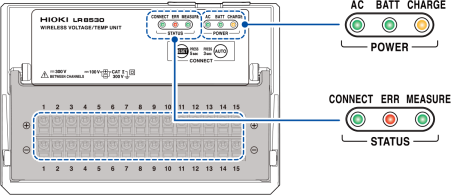

The wireless module’s LEDs are used to give you indications of the present operation status.
The following table describes the operation status and remedies against issues.
Power status
|
Status |
||
|---|---|---|
|
Lighting up. |
Off |
Running on externally supplied power. |
|
Off |
Lighting up. |
Running on battery. |
|
Off |
Repeatedly emits 3 flashes every 3 s. |
Battery is low. |
While the battery charging is in progress, the LED remains on.
|
Status |
|
|---|---|
|
Off |
Measurement stops. |
|
Lighting up. |
Measurement in progress. |
|
Emits 5 flashes for 1 s. |
Preparing. |
Wireless communications status
|
Status |
Remedy |
|
|---|---|---|
|
Off |
No communications in progress. |
– |
|
Lighting up. |
Communicating with LR8450-01. |
– |
|
Flashes in 2 s interval. |
Communications disrupted. Reconnecting. |
Please wait. |
|
Flashes in 1 s interval. |
Connecting with auto-connect. |
Please wait. |
|
Repeatedly emits 3 flashes every 3 s. |
Radio-wave intensity weakens. |
Place module in another place. |
|
Emits 5 flashes for 1 s. |
Processing. |
Please wait. Have it repaired if not remedied. |
Error status
|
Status |
Remedy |
|
|---|---|---|
|
Rapidly blinking. |
Z3230 or Z3231 not attached. |
Attach Z3230 or Z3231 Wireless LAN Adapter. |
|
Emits blinks in other patterns. |
Internal error occurs. |
Have it repaired. |
