Mounting the instrument on a wall or other surface

The mounting plate comes with the wireless modules.

You can anchor the wireless module, with the mounting plate attached, to a wall or another installation.

 CAUTION

Properly secure the mounting plate on a solid wall or other planes.

Failure to do so can cause the wireless module to fall, causing an accident that results in injury or death or damage to the wireless module.

Use the M3×4 mm flat-head screws only.

Using other screws can damage the wireless module or cause the wireless module to detach from the mounting plate.

You will need:
the mounting plate (comes with wireless modules), flat-head screws (M3×4 mm) ×2 (come with wireless modules), mounting screws (M4×8 mm or longer) ×2 (You need to prepare separately.), and a Phillip’s head screwdriver (No.2)

1 Secure the mounting plate onto the rear of the wireless module with two flat-head screws (M3×4 mm, accessory).

2 Secure the mounting plate on a wall with two M4 screws.
No mounting screws come with the wireless module. Please use commercially available screws. Recommended screws: M4×8 mm or longer

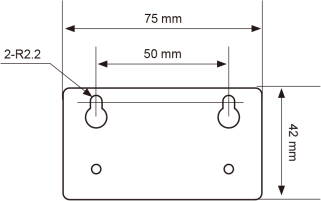

Dimensions of the mounting plate
