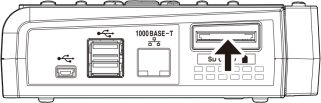

1 Orient the SD Memory Card so that the ▲ mark is facing upward and insert it into the SD card slot.

2 Insert the card until it locks in place with a clicking sound.

1 Make sure that the instrument is not accessing the SD Memory Card (not saving or loading data).

2 Press the FILE key to display the FILE screen.

3 Press the Left Arrow and Right Arrow keys to choose [SD].

4 Press the ENTER key while [Eject] is selected.

The [Eject media] window will be displayed.

5 Press the ENTER key while [OK] is selected.

After the message [SD card can be safely removed] has been displayed, you can remove the SD Memory Card.

6 Push in on the SD Memory Card. Once the card is sticking out slightly, grip it and pull it out.
