Connecting a current sensor

Applicable modules: U8556, LR8536



Connect one of the following supported current sensors (output connector: HIOKI PL14 connector).

Supported current sensors

CT7812 AC/DC Current Sensor (rated current: 2 A)

CT7822 AC/DC Current Sensor (rated current: 20 A)

CT7126 AC Current Sensor (rated current: 60 A)

CT7131 AC Current Sensor (rated current: 100 A)

CT7136 AC Current Sensor (rated current: 600 A)

CT7044 AC Flexible Current Sensor (rated current: 6000 A, Loop diameter: 100 mm)

CT7045 AC Flexible Current Sensor (rated current: 6000 A, Loop diameter: 180 mm)

CT7046 AC Flexible Current Sensor (rated current: 6000 A, Loop diameter: 254 mm)

CT7731 AC/DC Auto-Zero Current Sensor (rated current: 100 A)

CT7736 AC/DC Auto-Zero Current Sensor (rated current: 600 A)

CT7742 AC/DC Auto-Zero Current Sensor (rated current: 2000 A)

CT7116 AC Leakage Current Sensor (rated current: 6 A)



Operation is not guaranteed when using the following current sensors.

Unsupported current sensors

CT7631 AC/DC Current Sensor

CT7636 AC/DC Current Sensor

CT7642 AC/DC Current Sensor

DANGER

Do not use a current sensor outside of its rating or specifications.

Doing so may damage the current sensor or cause heat generation that could result in personal injury.

Do not measure currents that exceed the maximum input current.

Doing so may cause heat generation that could result in personal injury, fire, or damage to the instrument. The maximum measurable current of the current sensor will vary according to the frequency. Check the frequency derating characteristics in the current sensor’s user manual to determine the maximum input current.

1 Turn off the instrument.

2 Connect the current sensor to the current module by aligning the ▲ mark on the current module connector with the arrow on the current sensor connector.

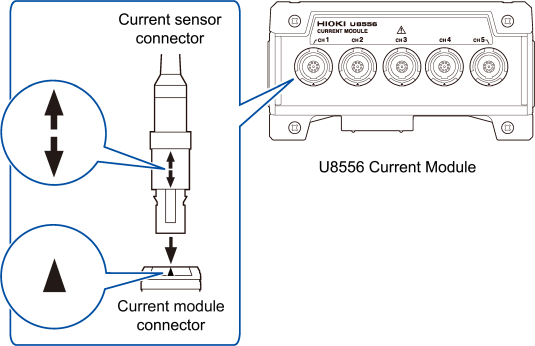

Plug-in modules

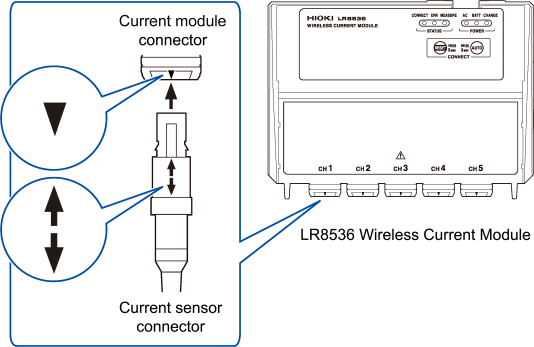

Wireless modules

3 Turn on the instrument.

The current sensor will be automatically recognized by the instrument.

Attaching input terminal caps

Attach the included cap when not connecting a current sensor.

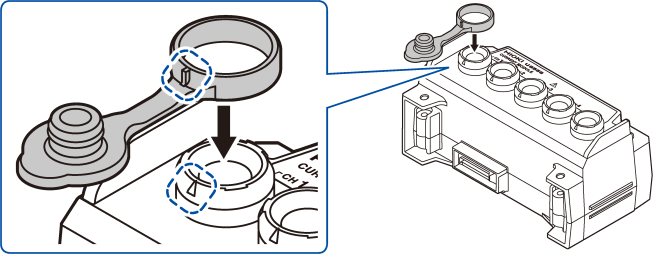

1 Attach the cap by aligning the ▲ mark on the current module connector with the protrusion on the cap.

Make sure the cap is securely attached to the top of the module.

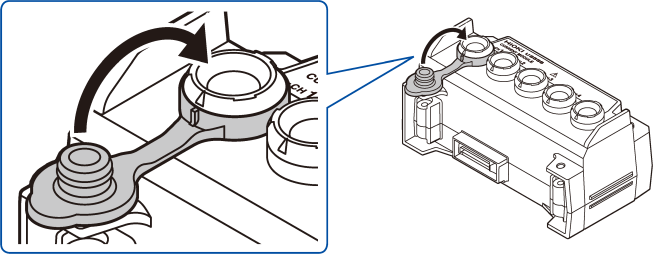

2 Fold the cap back.

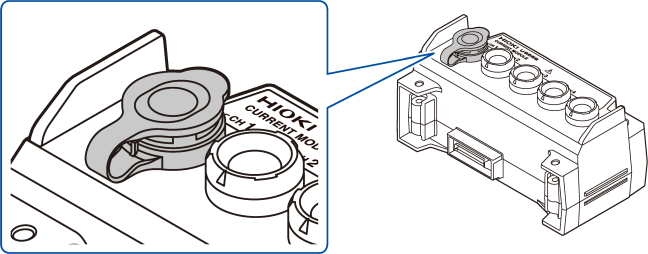

3 Insert the cap into the module connector.
