Connecting alarm output

This section describes how to connect alarm output to the instrument’s external control terminals.

You will need: a flat-head screwdriver (with a tip width of 2.6 mm) and an output cable (alarm output)



Recommended wire diameter

Single-wire

Diameter of 0.32 mm to 0.81 mm (AWG 28 to 20)

Stranded wire

0.08 mm2 to 0.32 mm2 (AWG 28 to 20)

Standard stripping length

10 mm

1 Position the instrument so that the external control terminals on its side are facing you.

2 Press down on the button for alarm output 1 (or alarm output 2 through 8) terminal with the flat-head screwdriver.

3 Insert the cable into the terminal hole while depressing the button.

4 Remove the flat-head screwdriver from the button.

The cable will be locked in place. Pull gently on the cable and verify that it does not come out.

5 Press down on the GND terminal button with the flat-head screwdriver.

There are 10 GND terminals. The wire can be connected to any of the GND terminals.

6 Insert the cable into the terminal hole while depressing the button.

7 Remove the flat-head screwdriver from the button.

The cable will be locked in place. Pull gently on the cable and verify that it does not come out.

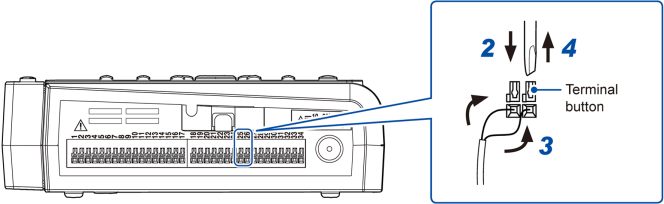

Example connecting to alarm output 4 and GND

How to check the pin assignments of the external control terminals

Press the QUICK SET key, and choose [External connection guide]. Names of the external control terminals will be displayed.
