Waveform display

This section describes how to change the method used to display measured waveforms.



Under [Display], select the waveform display method.

Wave+Set, Wave, Wave+Value, Value, Alarm, XY+Set*1, XY+Value*1

You can also select the display method with the WAVE key.

Each time you press the WAVE key, the display will cycle to the next display method.

  1. *1

    Can only be selected when [X-Y Composite] is [ON]

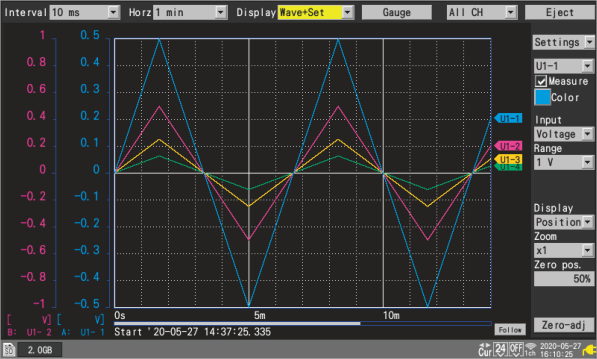

[Wave+Set]

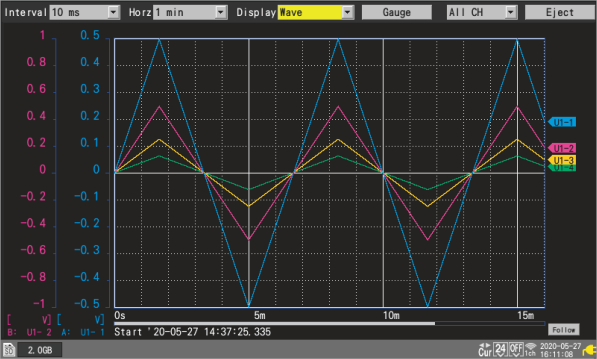

[Wave]

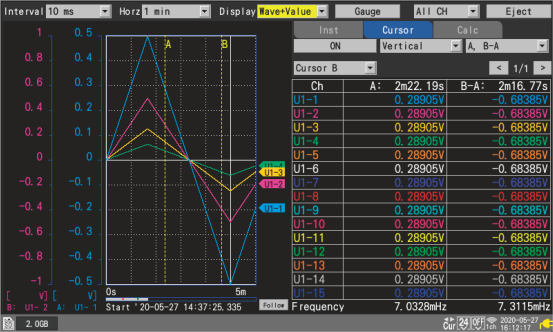

[Wave+Value]

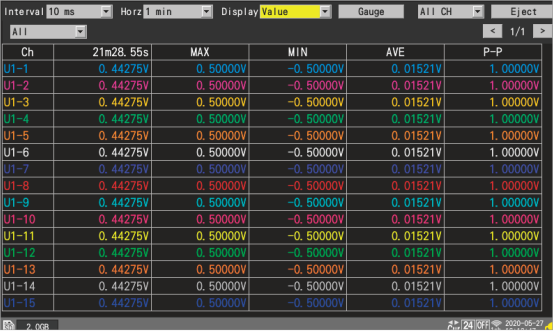

[Value]

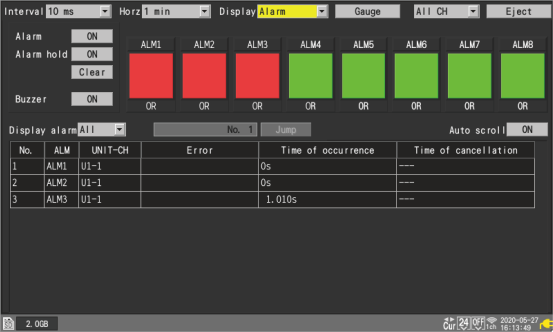

[Alarm]

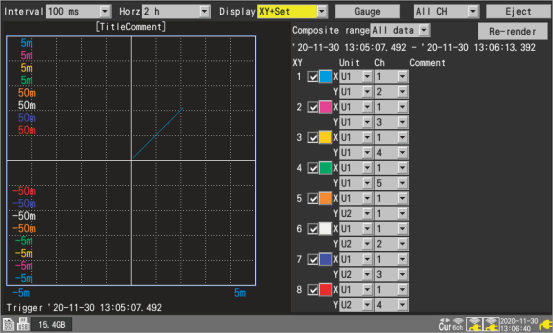

[XY+Set]

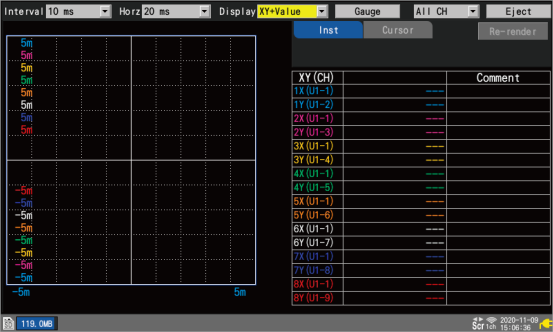

[XY+Value]
